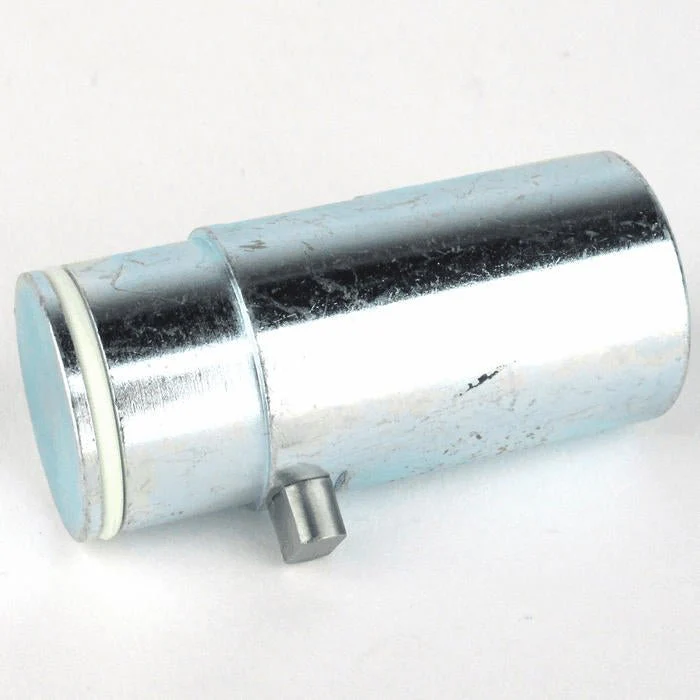

FT-50 Rear Bolt Assembly - Tippmann Part #TA45107

FT-50 Rear Bolt

• Correct Part: 11636-TA45107 = R10458
• Diagram Status: Listed correctly on the FT-50 diagram.
• Compatibility Note:
  • The FT-12 (68 cal) and FT-50 (50 cal) used the same rear bolt prior to the release of the Lite versions.

FT-50 Lite Rear Bolt

• Correct Part: 77451-TA45207 = R14164
• Diagram Status: Listed correctly on the FT-50 Lite diagram.

Rear Bolt Assembly (Correct Part Number) on the Tippmann FT-12 Diagram - Listed incorrectly as TA45022 on the diagram. OR TA45022 was an old part that’s been changed in some way and is now TA451
Rear Bolt Assembly on the Tippmann FT-50 Parts List and Diagram 2016-01-16 - Listed correctly on the diagram.
